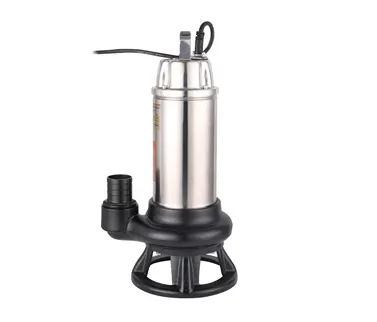

Portable and submersible pump with grinder system for waste water. They are intended for discharge of waste and contaminated water, operations in septic tanks, small and medium sized treatment applications.
Reliable & Efficient
at the flow rate range of 1.5 to 25 m³/h.
Pump head of 4.8 to 20 meters.
Lightweight: 25 to 28 kg.
Compact: Height: 45 cm.
Outstanding Features of Pump
Pump body, motor top cover and handle are manufactured from stainless steel.

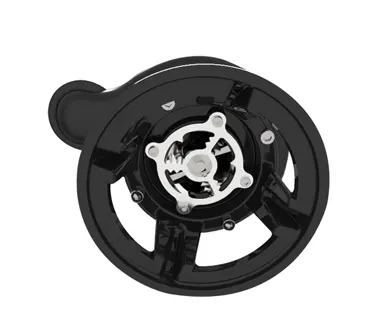

Grinder fan with infinite screw design (spiral) and special inlet diffuser.
Graphite / Ceramic mechanical seal. 5 meters submersion depth.
Resistant to atmosphere and fluid temperature up to 40 °C.
Up to 5 cm suction capacity from the floor.
H07RN 10 meters internal cable and floater.
Fan inlet diffuser with grinding feature.
Outstanding Features of Motor
1x230 V, 50 Hz.
Current: 5.2 to 10.3 A.
Power: 1 to 2 HP.
Asynchronous, bipolar.
IP 68 protection. F-grade isolation.
Available for continuous operation.
