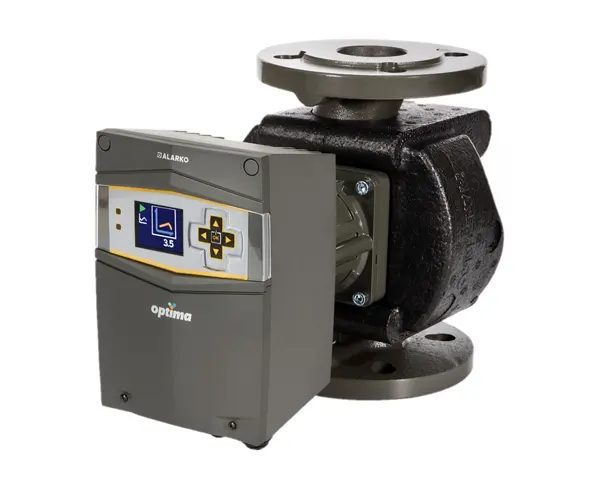

Alarko Optima BMS’s Key Benefits
1. Optional digital and analog communication modules compatible with building automation systems
2. Class A High Energy Saving
3. Ideal Performance
4. Reliability
5. Ease of Installation and Commissioning
6. Ease of after-sales service and spare parts supply
7. Electronically controlled
8. In accordance with Turkish SGM-2011/15 and EU EC 641/2009
Ideal Performance
Alarko Optima BMS serves in three different operating modes with continuous ideal operating point unlike conventional single and threespeed pumps. In this way, high energy saving is possible.
Safety
Alarko Optima circulation pumps are documented by the tests carried out in accordance with all the following standards and regulations.
• Machinery Directive 2006/42/ EC
• Low Voltage Directive 2014/35/ EC
• EMC Directive 2004/108/EC
• Ecodesign Directive 2009/125/ EC
• TS EN 60335-1-51:2003 + A2:2012
• TS EN 16297-1:2012
• TS EN 16297-2:2012
• TS EN 60335-1:2012
Higher efficiency design and key benefits with ECM (Electronically-Commutated Motor) Technology:
• No external sensors or controllers required.
• Motor life is prolonged with low engine temperature.
• Motor life is prolonged due to lower stress on the engine bearings.
• Vibration and noise levels are lower.
Ease Of Installation And Commissioning
Alarko Optima circulation pumps have junction boxes and connection sockets that help them to be commissioned very quickly and easily. These specially designed connection sockets on the control box allow the pump to be connected safely and as soon as possible without contact with mains voltage and electronic systems.
Multi Pump Operation Characteristics
Multi Pump mode operation is managed by the CCM module (software).
Multi Pump mode supports 1 to 8 pumps in a single network.
In a valid Multi Pump configuration, only 1 pump in a network must be defined as a Master Pump.
Each pump in the network must be manually assigned a unique ID by the user.
The ID of the master pump must be set to 0, and the ID of the other slave pumps must be set to 1, 2, 3.
Multi Pump mode has 3 different scenarios: Master/Slave, Main/Standby, Pump Cycling. (Details are given in the user manual.)
All slave pumps in the Multi Pump network will automatically have the main pump’s operating mode, set point, and multi pump mode without the need for additional setting.
AI at Your Service
3 different card options designed to meet all needs
1) Communication Control Module (Modbus RTU / BACnet MS-TP/ Multi-Pump)
2) Analog Control Module (with Relay)
3) Analog Control Module (without Relay
User Friendly Graphic Display
All controls and settings can be made with the help of 5 keys.
• Graphic Display, Digital Display and No Display options.
• User-friendly control and control system with Turkish software.
• English language support available as standard in the menu.
• “service info” feature showing the code and content of the last 5 errors occurred to the user.
The Perfect Design is Hidden in the Details...
Optima circulation pumps, which are produced with the latest technological facilities and designed with care in every part, have passed all tests successfully.
